M57 - Olympus IX85 (inverted) with sCMOS and colour camera
System Description

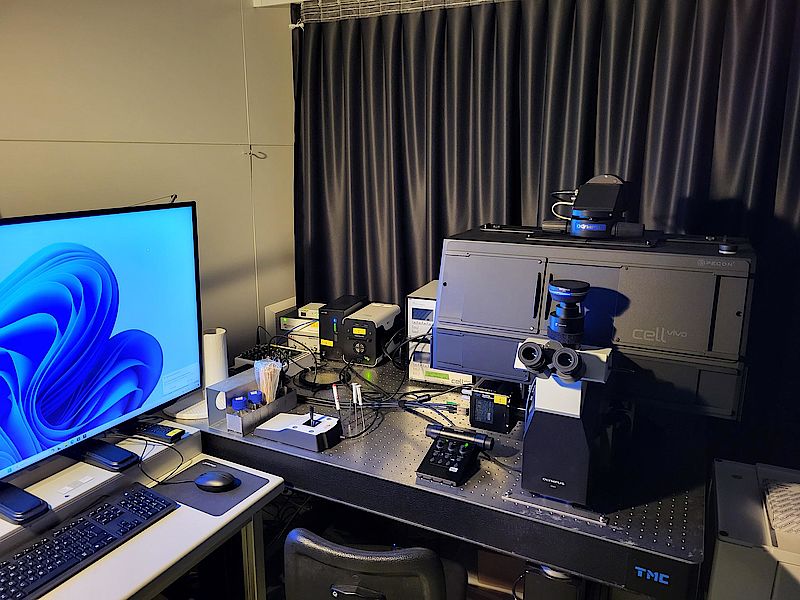

M57 - is a widefield microscope for brightfield and fluorescence based on an Olympus IX85 inverted microscope. It is equipped with temperature (heating), CO2 and humidity control, a motorized XYZ-stage as well as a sCMOS and color cameras. All components are controlled by CellSense software. The system is ideal for multidimensional experiments with different plate or dish formats making it suitable e.g. for various live cell experiments or the automatic acquisition of many images (screening).
Illumination
Illumination pE800
LED: 400nm, 435nm, 470nm, 500nm, 550nm, 580nm, 635nm, 740nm
Transmitted Light LED illumination – BF, DIC
Filters
DAPI: SB Ex 378/52 (in pE800); SB Em 460/50; BSP 400
FITC: SB Ex 474/27 (in pE800); SB Em 525/50; BSP 495
Cy3: SB Ex 554/23 (in PE800); Ex 545/25; Em 605/70; BSP 565
mCherry: SB Ex 631/23; Em 700/50; BSP 660
CFP YFP: DB CFP Ex 438/24 (in pE800); YFP Ex 509/22 (in pE800); Em and BSP as Chroma 59017 ET
Penta BP (DAPI, FITC, Cy3, Cy5, Cy7): DAPI SB Ex 378/52 (in pE800); FITC SB Ex 474/27 (in pE800); CY3 SB Ex 554/23 (in PE800); Cy5 Ex 635/18 (in pE800); Cy7 Ex 735/28 (in pE800); Em as AHF F67-050 and BSP as AHF F68-050
Objectives
Objectives
2x/0.08 (Air) WD 6.2 mm
4x/0.16 (Air) WD 13mm
10x/0.4 (Air) WD 3.1mm
20x/0.75 (Air) WD 0.6mm
40x/0.95 (Air) WD 0.18mm
25x/0.85 (SilGel) WD 2.00mm (1.00 mm with gel pad)
On request
10x/0.3 (Air) WD 10mm
Cameras
Camera 1 – Teledyne Kinetix sCOMS, Pixel Size: 6.5um, 3200x3200, 10.24 Megapixels)
Camera 2 – Olympus DP28, Pixel Size: 3.45 um (4104x2174, 8.9 Megapixels)
Additional devices
Additional manual magnification of 1.6X and 2X
Motorized XY stage with piezo Z
Hardware Autofocus
Incubator and CO2
